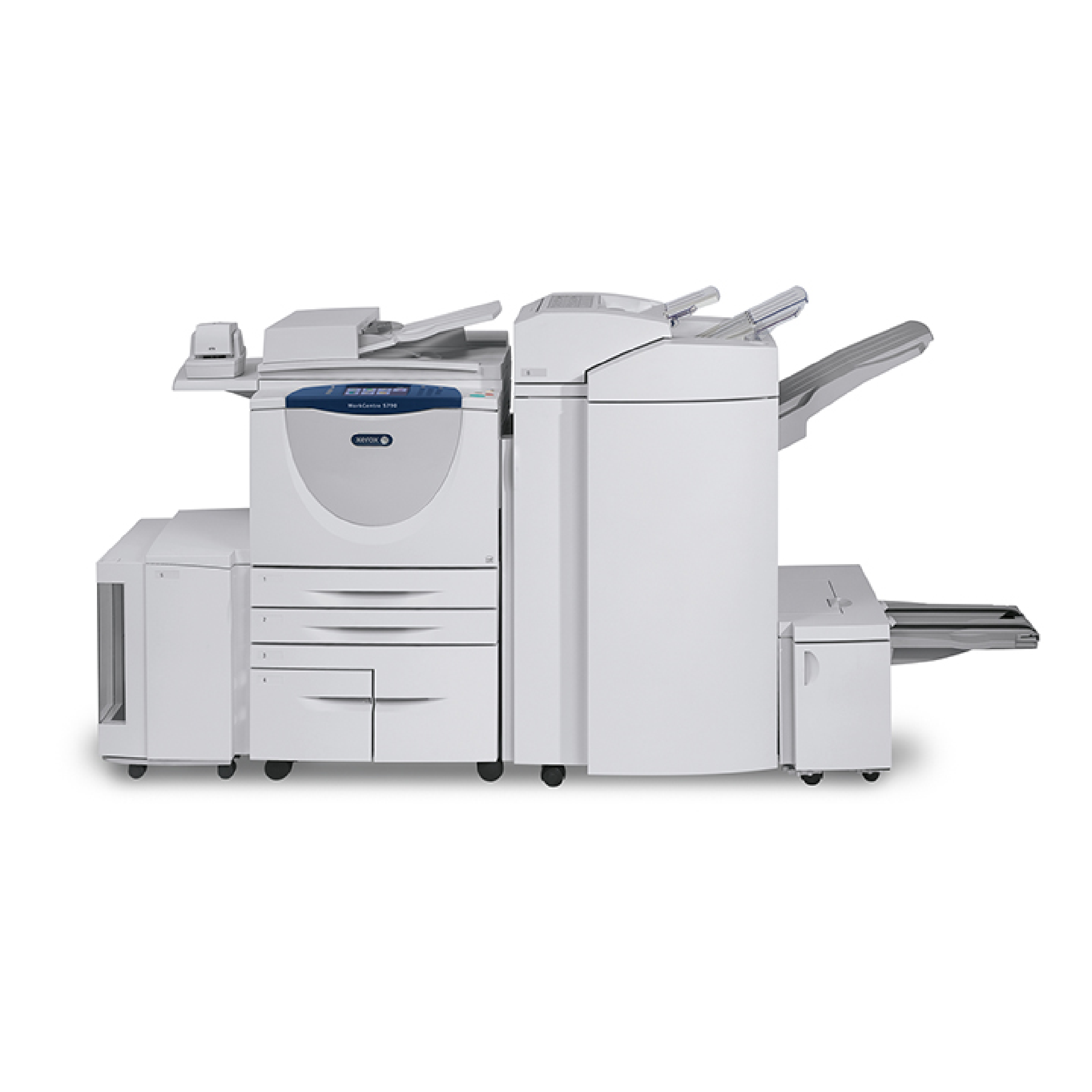

Xerox WorkCentre 5755 Multi-function Printer

Copier Type

digital

Printing Technology

Laser – monochrome

Monthly Duty Cycle (max)

200000 impressions

Office Machine Features

Xerox Extensible Interface Platform (EIP), scan to e-mail, scan to folder, scan to network

Display Features

Touch screen

Electronic Auditron

2500 accounts

Manufacturer

Xerox

Standard Memory

1 GB

Max Supported Memory

2 GB

Hard Disk Drive

80 GB

First Print Out Time B/W

3.4 sec

Features

touch screen

Consumables Included

1 x cartridge (black) – up to 30000 pages

Compliant Standards

CB, DOC, EN 60950, FCC Class A certified, IEC 60950, UL 1950 Third Edition

Included Office Machine Accessories

stand

First Copy Out Time B/W

3.4 sec

Power Consumption Sleep

15 Watt

Power Consumption Standby

300 Watt

Power Consumption Operational

1330 Watt

Max Copying Speed

Up to 55 ppm

Max Copying Resolution

Up to 600 x 4800 dpi

Max Copying Speed B/W

55 ppm

Max Copying Resolution B/W

600 x 4800 dpi

Warm-Up Time

30 sec

First Copy Out Time B/W

3.4 sec

Max Document Enlargement

400 %

Max Document Reduction

25 %

Automatic Duplexing

Yes

Maximum Copies

9999

Exposure Modes

photo, text, text and photo

Copying Features

ID Card Copy, Preset Reduction/Enlargement Ratios, auto paper select, auto tray switching

Installed Size

1 GB

Max Supported Size

2 GB

Blue Angel Compliant

Yes

ENERGY STAR Certified

Yes

Max Printing Resolution

Up to 1200 x 1200 dpi

Max Printing Speed

Up to 55 ppm

Max Resolution B/W

1200 x 1200 dpi

Printer Drivers / Emulations

PCL 5e, PCL 6, PDF, PostScript 3

Max Printing Speed B/W (ppm)

55 ppm

Automatic Duplexing

Yes

Stacker

optional

Stapler

optional

Binder

optional

Network Protocols

AppleTalk, IPP, IPX/SPX, LPR/LPD, NetBEUI, RAW IP (Port 9100), SMB, TCP/IP

Security Protocols & Features

Kerberos, LDAP, Secure Print, SSL, Apple Bonjour, SMB authentication, IPsec, 802.1x, Secure Fax

Operating System Support

MS Windows XP, Novell NetWare 5.x, MS Windows Server 2003, Sun Solaris 8, Sun Solaris 9, Apple Mac OS X 10.4, Apple Mac OS X 10.5, MS Windows 7, Apple Mac OS X 10.6.x, openSUSE 11.0, MS Windows Vista, Red Hat Enterprise Linux 4, HP-UX 11i v2, Sun Solaris 10, Fedora Linux, MS Windows Server 2008, Novell NetWare 6.x, IBM AIX 5.3, SunSoft Solaris x86 10

Min Operating Temperature

50 °F

Max Operating Temperature

89.6 °F

Humidity Range Operating

10 – 85%

Max Media Size

A3

Document & Media Handling Details

ADF – 100 sheets size: A5 (5.83 in x 8.25 in) – A3 (11.7 in x 16.5 in) weight: 50 g/m² – 160 g/m²
Bypass tray – 100 sheets size: A6 (4.13 in x 5.83 in) – A3 (11.7 in x 16.5 in) weight: 60 g/m² – 216 g/m²
2 x input tray – 500 sheets size: A5 (5.83 in x 8.25 in) – A3 (11.7 in x 16.5 in) weight: 60 g/m² – 200 g/m²

Speed Details

Copying: up to 55 ppm (A4)
Copying: up to 31 ppm (A3)
Printing: up to 55 ppm (A4)
Printing: up to 31 ppm (A3)
Scanning: up to 80 ppm (A4) – B/W

Min Original Size

A6 (4.13 in x 5.83 in)

Max Original Size

A3 (11.7 in x 16.5 in)

Original Type

books, sheets

Document Feeder

ADF

Document Feeder Capacity

100 sheets

Media Type Class

envelopes, film / transparencies, other, plain paper

Media Size Class

A3

Min Media Size

A6 (4.13 in x 5.83 in)

Min Media Weight

60 g/m²

Max Media Weight

216 g/m²

Supported Media Type

bond paper, envelopes, labels, plain paper, recycled paper, transparencies

Supported Media Sizes

A3 (11.7 in x 16.5 in), A4 (8.25 in x 11.7 in), A5 (5.83 in x 8.25 in), A6 (4.13 in x 5.83 in)

Standard Media Capacity

1100 sheets

Max Media Capacity

8700 sheets

Bypass Feeder Capacity

100 sheets

Brand

Xerox

Product Line

Xerox WorkCentre

Model

5755

Packaged Quantity

1

Type

Gigabit LAN, USB

Total Qty

1

Type

printer / copier / scanner

Functions

copier, printer, scanner

Monthly Duty Cycle (max)

200000 impressions

Printing Technology

laser

Printing Output Type

monochrome

Electronic Auditron

2500 accounts

Office Machine Features

Xerox Extensible Interface Platform (EIP), scan to e-mail, scan to folder, scan to network

Width

37.6 in

Depth

25.4 in

Height

45.3 in

Optical Resolution

600 x 600 dpi

First Print Out Time B/W

3.4 sec

Type

cartridge

Duty Cycle

30000 pages

Color

black

Included Qty

1

Type

ADF, bypass tray, input tray

Media Feeder Qty

2

Media Feeder Capacity

100 sheets, 500 sheets

Min Media Weight

50 g/m², 60 g/m²

Max Media Weight

160 g/m², 200 g/m², 216 g/m²

Min Media Size

A5 (5.83 in x 8.25 in), A6 (4.13 in x 5.83 in)

Max Media Size

A3 (11.7 in x 16.5 in)

Operating System Support

Apple Mac OS X 10.4, Fedora Linux, HP-UX 11i v2, IBM AIX 5.3, MS Windows 7, MS Windows Server 2003, MS Windows Server 2008, MS Windows Vista, MS Windows XP, Novell NetWare 5.x, Novell NetWare 6.x, Red Hat Enterprise Linux 4, Sun Solaris 10, Sun Solaris 8, Sun Solaris 9, SunSoft Solaris x86 10, openSUSE 11.0

Function

copying, printing, scanning

Max Speed

31 ppm, 55 ppm, 80 ppm

Size

A3, A4

Mode

B/W

Connection Availability

Yes

Interface

Gigabit LAN, USB

Security Protocols & Features

802.1x, Apple Bonjour, IPsec, Kerberos, LDAP, SMB authentication, SSL, Secure Fax, Secure Print

Voltage Required

AC 230 V

Frequency Required

50/60 Hz

Power Consumption Operational

1330 Watt

Power Consumption Standby

300 Watt

Power Consumption Sleep

15 Watt
