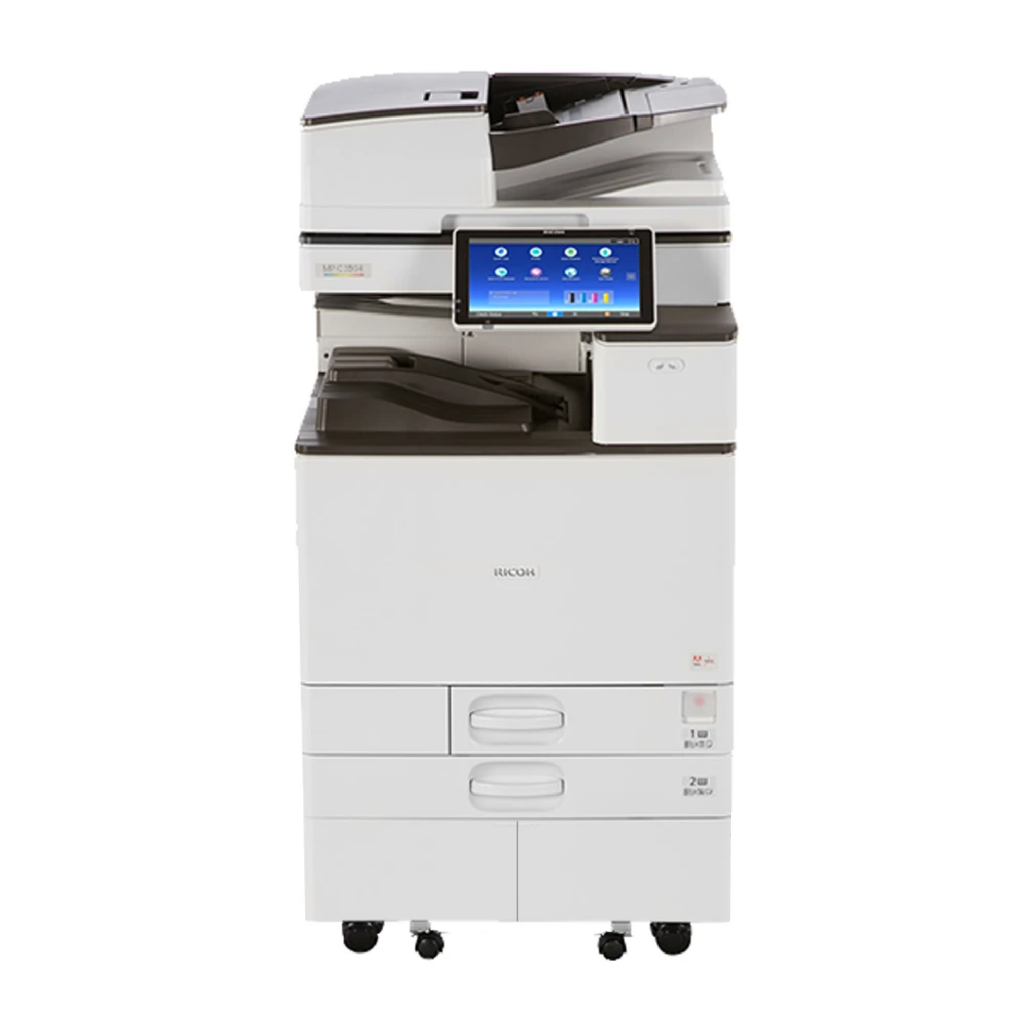

The Ricoh MP-C3004 Color Laser MFP is designed with innovative technology that enables you to create unique and efficient workflows for printing, scanning, copying and faxing. With its built-in motion sensor, the Ricoh C3004 Printer is ready to work when you are. Print rich colored presentations up to 30 pages per minute and scan two-sided documents up to 180 images per minute. Another outstanding feature of the Ricoh MP C3004 MFP is that you just tap, drag, scroll and swipe with ease on the 10.1″ Wide Super VGA Smart Operation Panel for quick and easy printing.



General Specifications

Printing Process:

4-Drum Method

Output Speed (Copy/Print)

30-ppm B&W & FC (LTR)

Warm-Up Time

25 seconds

Recovery from Sleep Mode

Approximately 1.0 second

First Copy Time (FC/B&W)

7.1/4.6 seconds

Copy Resolution

600 dpi

Quantity Indicator

Up to 999 copies

Single Pass Document Feeder (SPDF)

Original Capacity: 220 sheets
Original Size: 5.5” x 8.5” – 11” x 17” (A5-A3)
Paper Weights: Simplex: 11- 34 lb. Bond (40-128 g/m2), Duplex: 14- 34 lb. Bond (52-128 g/m2)

Auto Duplex

Standard

Output Capacity

Standard: 500 sheets
Maximum: 1,625 sheets

Zoom

25% – 400% in 1% increments

Dimensions

23.1″ x 27.0″ x 37.9″ (587 x 685 x 963 mm)

Weight

223 lbs. (101 kg)

Power Requirements

120V – 127V, 60Hz, 15A

Power Consumption

1,584W or less; Sleep Mode: .83W or less

TEC Value**

1.2 kWh/week

*Bypass Tray Only
** Typical Electricity Consumption by ENERGY STAR Qualified Imaging Equipment Test Procedure



Printer Specifications (Standard)

CPU

Intel Atom Processor Bay Trail 1.33 GHz

Memory /HDD

2 GB RAM/250GB HDD Standard & 4GB RAM/250 GB HDD Option

Page Description Languages

Standard: PCL5c, PCL6, PDF
Optional: Adobe PostScript3, PictBridge, XPS

Font Support

Standard: PCL: 45 Scalable fonts + International 13 fonts
Optional: PostScript 3: 136 Roman fonts

Max Print Resolution

1200 x 1200 dpi

Network Interfaces

Standard: 1000Base-T/100Base-TX/10Base-T Ethernet, USB2.0 Type A (3 Ports), SD Slot on Operation Panel
Option: IEEE1284/ECP; IEEE802.11a/b/g/n; USB2.0 Type B

Network Protocol Support

TCP/IP (IPv4, IPv6)

Network/OS

Windows Vista/7/8/8.1/10/ Server 2008/Server 2008R2/ Server2012/ Server2012R2
Unix; Sun Solaris, HP-UX, SCO OpenServer, RedHat Linux, IBM AIX, Citrix Presentation Server 4.5, XenApp 5.0
Mac OS X v.10.7 or later, SAP R/3, IBM iSeries AS/400-using OS/400 Host Print Transform

Utilities

Device Manager NX Series, Web Image Monitor, @Remote



Document Server Specifications (Standard)

Max. Stored Documents

3,000

Max. Pages/Document

2,000

Max. Page Capacity

9,000

Max. Number of Folders

200



Scanner Specifications (Standard)

Supported File Formats

Single/Multi-Page TIFF, PDF, High Compression PDF & PDF/A Single Page JPEG

Scan Modes

Scan-to-Email (with LDAP support)
Scan-to-Folder (SMB/FTP)
Scan-to-URL
Scan-to-Media (USB/SD Card)
Network TWAIN Scanning



Scanner Specifications (TWAIN) (Standard)

Scanner Resolution

B&W and FC scanning at 100 – 600 dpi, Up to 1200 dpi for TWAIN scanning

Scanning Speed (B&W & Color LTR)

200/300 dpi: 110 ipm Simplex/180 ipm Duplex

Scan Area

11.7″ x 17″ (297 mm – 432 mm)

Compression Method

B&W TIFF: MH, MR, MMR, JBIG2
Color: JPEG



Facsimile Specifications (Optional)

Type

ITU-T (CCITT) G3

Resolution

200 x 100 dpi, 200 x 200 dpi, 400 x 400 dpi (with optional SAF memory)

Circuit

PSTN, PBX

Modem Speed

33.6K – 2,400 bps w/Auto Fallback

Compression Method

MH, MR, MMR, JBIG

Transmission Speed

G3: Approximately 2 seconds/page (JBIG)

Scanning Speed

Up to 81 spm

Autodials

2,000 Quick/Speed Dial numbers; 100 Group Dial numbers

Memory Capacity (SAF)

Standard: 4 MB (approx. 320 pages), Optional: Optional: 64 MB (approx. 4,800 pages) with optional SAF memory



Security Features (Standard)



DataOverwriteSecurity System (DOSS), HDD Encryption, User Codes, SNMP v3 Support, Encryption, Locked Print, User Authentication, 802.1x Wired Authentication, Quota Setting/Account Limit, Digitally Signed PDF, and more
