HP Design-Jet 800ps Printer (42-Inch Model)
- Print Size: 24″ x 150′ Max
- Print Speed: 36 Sq. Ft. Per Hour
- Resolution: 2400 x 1200 dpi
- Memory: 96 MB (160 MB Max.), 6 GB Hard Drive
- Connectivity: Parallel, USB and 10/100Base-TX Ethernet
- Description
- Size Guide
Description
Printer features
-
Embedded HP-GL/2 processor with drivers for AutoCAD and Windows
-
Embedded Adobe (R) PostScript (R) 3 RIP, with drivers for Macintosh and Windows (HP Designjet 800PS series only)
-
6 GB hard disk and 96 MB of RAM, expandable up to 160 MB (HP Designjet 800 series only)
-
6 GB hard disk and 160 MB of RAM (HP Designjet 800PS series only)
-
Powerful network card: HP Jetdirect 10/100 BaseTX print server, as well as USB 1.1 and parallel ports
-
CALS G4 files also accepted
System requirements
-
Microsoft (R) Windows 9x
-
Windows NT or 2000
Mac OS 8.1 or later
Recommended cables
|
HP Designjet 800,
24 Inch
|
HP Designjet 800,
42 Inch
|
HP Designjet 800PS, 24 Inch
|
HP Designjet 800PS, 42 Inch
|
|
Media specifications
|
Model
|
Sheet Sizes
|
Roll Sizes
|
|
42-inch model
24-inch model
|
Width: 21.08 cm to 106.68 cm
(8.3 to 42 inches)
Length: 21.08 to 189.73
(8.3 to 74.7 inches)
Width: 21.08 cm to 60.96 cm
(8.3 to 24 inches)
Length: 21.08 cm to 189.73
(8.3 to 74.7 inches)
|
Width: 60.96 cm, 91.44 cm, and 106.68 cm
(24, 36, and 42 inches)
Length: up to 45.72 m
(up to 150 feet)
Width: 60.96 cm
(24 inches)
Length: up to 45.72 m
(up to 150 feet)
|
Media handling information
-
Sheet feed
-
Roll feed
-
Automatic cutter
Margins
-
Side margins, 5 mm
-
Leading edge margin, 17 mm
-
Trailing edge margin, 17 mm
Ink information
|
Supply Item
|
Ink Cartridge
|
Ink Cartridge
|
Printhead
|
|
HP no.10
Black
|
C4844A
|
X
|
X
|
|
HP no.82
Cyan
Magenta
Yellow
|
X
|
C4911A
C4912A
C4913A
|
X
|
|
HP no.11
Black
Cyan
Magenta
Yellow
|
X
|
X
|
C4810A
C4811A
C4812A
C4813A
|
Memory information
HP Designjet 800
-
Standard: 96 MB RAM and 6 GB hard disk
-
Maximum: 160 MB RAM and 6 GB hard disk
HP Designjet 800PS
-
Standard: 160 MB RAM and 6 GB hard disk
-
Maximum: 160 MB RAM and 6 GB hard disk
Physical specifications
|
Attribute
|
Specification
|
|
Size
|
24-inch models
124.46 cm by 48.26 cm by 35.56 cm
(49 inches by 19 inches by 14 inches)
42-inch models
70.18 cm by 68.58 cm by 109.22cm
(67 inches by 27 inches by 43 inches)
|
|
Weight
|
24-inch models
38.55 kg
(85 pounds)
42-inch models
44.90 kg
99 pounds
|
Electrical specifications
|
Attribute
|
Specification
|
|
Power requirements
|
100 to 240 V AC +/- 10 percent auto-ranging;
50 to 60 Hz, 2 amps maximum
|
|
Power consumption
|
150 Watts maximum
|
Environmental specifications
|
Attribute
|
Specification
|
|
Operating temperature
|
5.00 degrees to 40.00 degrees Celcius (C)
(41 degrees to 104 degrees Fahrenheit (F))
|
|
Storage temperature
|
4.44 degrees to 70.00 degrees C
(40 degrees to 158 degrees F)
|
|
Relative humidity
|
15 percent to 80 percent RH
|
|
Acoustic Noise
|
Pressure
Printing: 52 dB (A)z
Power
65 dB (A)
|
General warranty
HP provides a one-year warranty with free, on-site, next business-day service, backed by HP support centers around the world. HP Supportpacks and Service Agreements allow you to extend your warranty to up to five years, and can provide around-the-clock service with a response time of within four hours, every day of the year (depending on the country).
Product certifications
-
Canada CSA C22.2
-
Europe 73/23/EEC EN60950
-
Mexico DGN
-
Norway NEMKO, EN 60950, EMKO TSE(74)DK207/94
-
US ITE,UL 1950
-
China CCIB certified
-
Czech Republic EZU IEC950 certified
-
Singapore PSB
-
Poland PCBC certified
-
Russia GOST certified
| size | chest(in.) | waist(in.) | hips(in.) |
|---|---|---|---|
| XS | 34-36 | 27-29 | 34.5-36.5 |
| S | 36-38 | 29-31 | 36.5-38.5 |
| M | 38-40 | 31-33 | 38.5-40.5 |
| L | 40-42 | 33-36 | 40.5-43.5 |
| XL | 42-45 | 36-40 | 43.5-47.5 |
| XXL | 45-48 | 40-44 | 47.5-51.5 |
RELATED PRODUCTS

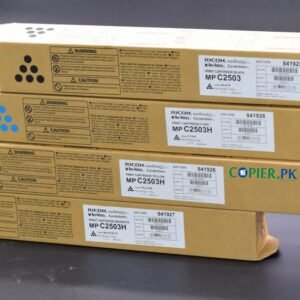

RICOH Aficio MP C2503H Toner Cartridge Set
