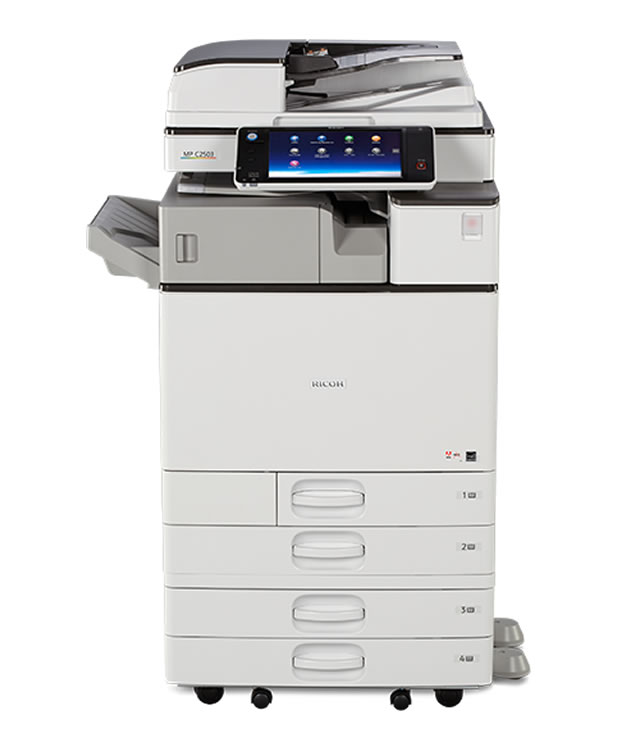

Ricoh MP C3503

General Specifications:

Printing Process 4-Drum Method:MP C4503: 45-ppm B&W & FC (LTR)
Warm-Up Time: Less than 20 seconds
Recovery from: Less than 10 seconds

Sleep Mode
First Copy Time (FC/B&W) 7.1/4.6 seconds (MP C3003/MP C3503)
Copy Resolution 600 dpi
Quantity Indicator Up to 999 copies
Single Pass Document Original Capacity: 220 sheets
Feeder (SPDF) Original Size: 5.5″ x 8.5″ – 11″ x 17″
(A5 – A3)
Paper Weight:Simplex: 11 – 34 lb. Bond (40 – 128 g/m2) Duplex: 14 – 34 lb. Bond (52 – 128 g/m2)
Paper Capacity Standard: 2 x 550 sheets + 100-Sheet
Bypass Tray, Maximum: 4,700 sheets
(w/Tandem LCT + Side LCT)
Supported Paper Sizes 1st Paper Tray: 8.5″ x 11″ (A4)
2nd Paper Tray: 5.5″ x 8.5″ – 12″ x 18″,Envelopes
Bypass: Up to 12″ x 18″, Envelopes
Custom Sizes: Width: 3.5″ – 12.6″
(90 – 320 mm), Length: 5.8″ – 23.6″
(148 – 600 mm) Fax/Printer; 5.8″ – 18″
(148 – 457 mm) Copy/Document Server
Supported Paper Standard Trays: 14 – 80 lb. Bond/
Weights 166 lb. Index (52 – 300 g/m2)
Bypass Tray: 14 – 80 lb. Bond/
166 lb. Index (52 – 300 g/m2)
Duplex Unit: 14 – 68 lb. Bond/
142 lb. Index (52 – 256 g/m2)
Paper Types Plain, Recycled, Letterhead, Cardstock,
Preprinted Paper, Bond Paper, High-Gloss
Coated Paper, Color Paper, Envelopes,
Labels* & OHP*
*Bypass Tray Only
Auto Duplex Standard
Output Capacity Standard: 500 sheets
Maximum:3,625 sheets (MP C4503/MP C5503/MP C6003)
Zoom 25% – 400% in 1% increments
Dimensions (WxDxH): MP C3003/MP C3503: 23.1″ x 27.0″ x 35.9″ (587 x 685 x 912 mm)
Weight:MP MP C3003/MP C3503: 205.1 lbs. (93.1 kg)
Power Requirements 120V – 127V, 60Hz, 12A
Power Consumption 1,584W or less
TEC Value*
MP C4503: 1.87 kWh/Week
*Typical Electricity Consumption by ENERGY STAR Qualified Imaging Equipment Test Procedure

Printer Specifications:

CPU PMC-Sierra RM7035 600 MHz
(MP C3003/MP C3503)
Memory 1.5 GB RAM/250GB HDD Standard &
2GB RAM/250 GB HDD Maximum
(MP C3003/MP C3503)
Page Description Standard: PCL5c, PCL6, PDF Direct
Languages Print, Media Print & XPS
Optional: Adobe PostScript3, IPDS &
PictBridge
Font Support Standard: PCL: 45 Scalable fonts +
International 13 fonts
Optional: PostScript 3: 136 Roman fonts;
IPDS: 108 Roman fonts
Max. Print Resolution 1200 x 1200 dpi
Network Interfaces Standard: 1000Base-T/100Base-TX/
10Base-T Ethernet, USB2.0 Type A
(3 Ports), USB2.0 Type B & SD Slot
on Operation Panel
Network Protocol Support TCP/IP (IPv4, IPv6), IPX/SPX*
Network/OS Windows XP/Vista/7/8/Server 2003/
Server 2008/Server 2008R2/Server
2012, Netware 6.5*
Unix; Sun Solaris, HP-UX, SCO
OpenServer, RedHat Linux, IBM AIX,
Mac OS X v.10.5 or later,
SAP R/3, NDPS Gateway,
IBM iSeries AS/400-using OS/400
Host Print Transform
Utilities Web SmartDeviceMonitor
Web Image Monitor, @Remote™

Document Server Specifications:

Max. Stored Documents 3,000 documents
Max. Page Capacity 9,000 pages

Scanner Specifications:

Scanner Resolution B&W and FC scanning at 100 – 600
dpi, Up to 1200 dpi for TWAIN scanning
Scanning Speed 200/300 dpi: 79 ipm (MP C3003/
(B&W & Color LTR) MP C3503) and 110 ipm Simplex/
180 ipm Duplex (MP C4503/MP C5503/
MP C6003)
-ll;Scan Area 11.7″ x 17″ (297 mm – 432 mm)
Compression Method B&W: MH, MR, MMR, JBIG2, JPEG
Color: JPEG
Supported File Single/Multi-Page TIFF, PDF,
Formats High Compression PDF & PDF/A
Single Page JPEG
Scan Modes Scan-to-Email (with LDAP support )Scan-to-Folder (SMB/FTP/NCP*) Scan-to-URLScan-to-Media (USB/SD Card)
Network TWAIN Scanning
*Netware option is required

Facsimile(Fax) Specifications:

Type: Fax Option
Type M3 (MP C3003/MP C3503)
Resolution 200 x 100 dpi, 200 x 200 dpi, 400 x
400 dpi (with optional SAF memory)
Modem Speed 33.6K – 2,400 bps w/Auto Fallback
Compression Method MH, MR, MMR, JBIG
Transmission Speed G3: Approximately 2 seconds/page (JBIG)
82 spm MP C4503/MP C5503/MP C6003
Auto Dialing 2,000 Quick/Speed Dial numbers;
100 Group Dial numbers
Memory Capacity Standard: 4 MB (approx. 320 pages),
(SAF) Optional: 28 MB (approx. 2,240 pages)
with optional SAF memory

Security Features:

DataOverwriteSecurity System (DOSS), HDD Encryption, User Codes,
SNMP v3 Support, Encryption, Locked Print, User Authentication,
802.1x Wired Authentication, Quota Setting/Account Limit, Digitally
Signed PDF, and more
